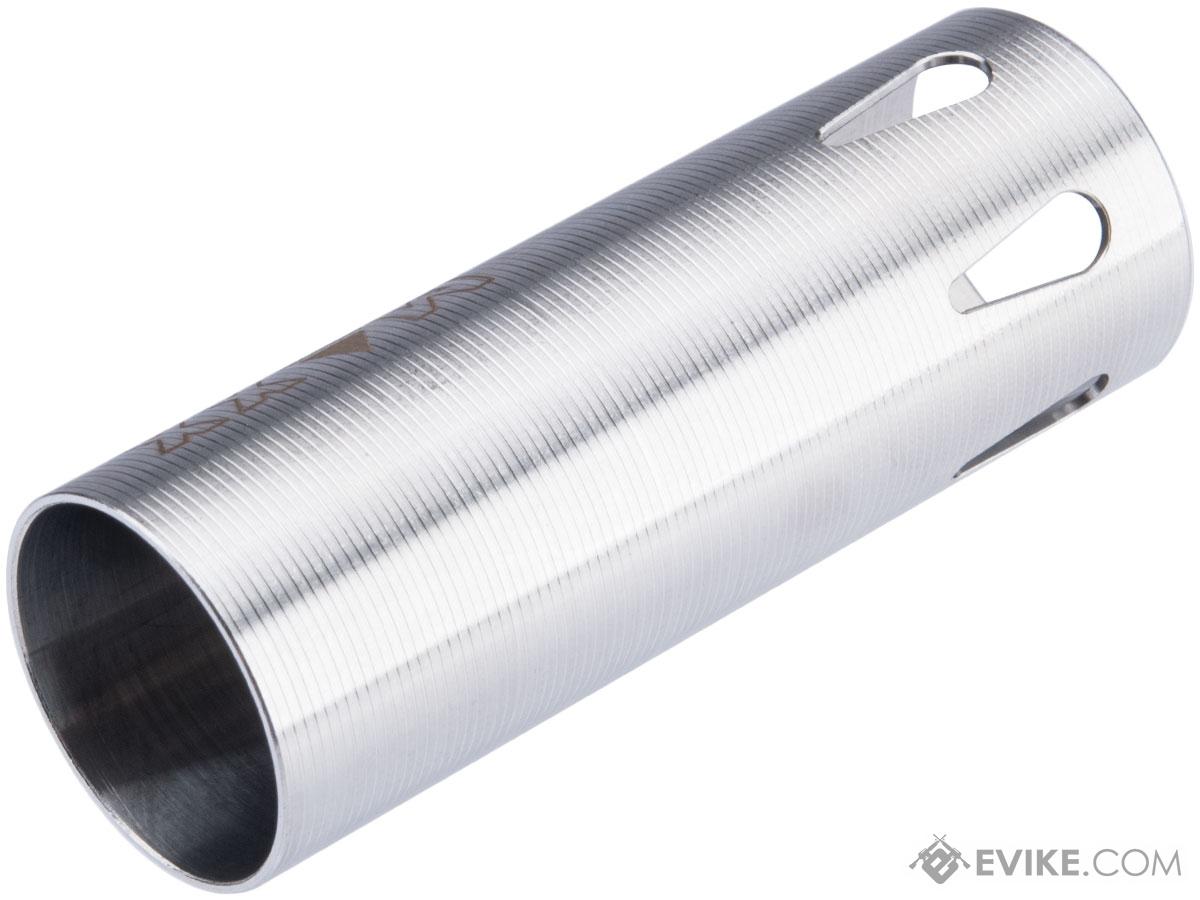

Maxx Model CNC Hardened Stainless Steel Airsoft AEG Cylinder
(Model: Type C / 300-400mm)

ID: 26969 (CYL-MX-CYL001SSC)
MX-CYL001SSC
Tap or click above to open expanded view
Maxx Model Products

$19.95

MAP ProtectedExempt From Coupons
The manufacturer of this product enforces a strict minimum advertised price (MAP) policy which excludes this product from any additional discount coupon codes. This item, however, may qualify for free shipping.
Model Options:
ModelType A / 450-550mm
ModelType B / 400-450mm
ModelType C / 300-400mm
ModelType D / 250-300mm
ModelType E / 200-250mm
ModelType F / 110-200mm

Description

Specs

Reviews

Find in Store

Product Description

Features

  • Precisely machined to ensure consistent air compression and improve durability
  • Made of high strength stainless steel
  • High polished internal surface to reduce friction and wear to maximize performance and durability
  • Compatible with most standard airsoft AEG gearboxes
CNC Hardened Stainless Steel Cylinder - TYPE C (for 300mm - 400mm barrel length) is precisely machined to ensure consistent air compression and improve durability for most standard airsoft AEG gearboxes.

The Cylinder is made of high strength stainless steel with high polished internal surface to reduce friction and wear to maximize performance and durability.

Manufacturer: Maxx Model

Disclaimer: Recommended for users with Airsoft gearbox experience.
Note: Don't forget! When installing the cylinder, the ports should always face towards the spring guide!

What Are Type 0, 1, 2, and 3 cylinders?

  • Type 0: Type 0 Cylinders are full volume cylinders that use all the amount of air in the cylinder to propel a BB forward. Works best with 363mm to 550mm inner barrel lengths as that amount of air will be needed to push bbs farther in Rifle and DMR-style builds.
  • Type 1: Type 1 Cylinders are ported cylinders that are cut right at the edges of a cylinder to utilize a portion of the full amount of air volume. Works best with 318mm to 510mm inner barrel lengths for Carbine-like builds.
  • Type 2: Type 2 Cylinders are ported cylinders that have inset cuts a third of the way into a cylinder to allow more air blow-off. Works best with 280mm to 430mm inner barrel lengths for PDW and CQB builds.
  • Type 3: Type 3 Cylinders are ported cylinders that are cut at about the middle of the way into a cylinder to let half the overall air volume generated to be blown out. Works best with 45mm to 229mm inner barrel lengths for extremely short barrel builds and CQB oriented DSG builds.


    • MAXXimize your Performance! MAXX Airsoft Breakdown! Article

    6 Customer Reviews

    (Write a review)

    by Efrain V. on 09/04/2023
    "My review is for the TYPE D cylinder.

    I highly recommend this cylinder to improve your FPS consistency and air seal.

    The advertisement for fitment is spot on. I paired this with a prommy EG barrel 260mm inner barrel. My FPS is spot on at 355fps. and my groupings improved because it balanced out the air for my barrel length.

    Very happy with this purchase.
    by Felix A. on 05/06/2023
    "I bought the air cylinder Type F for my G&G ARP9 to match my inner barrel and the listed parts are in my ARP9 are:

    Stock Ver.2 Gearbox Shell
    Stock 8mm Bushings
    Stock Gear set (shims added)
    Stock Anti-Reversal Latch
    G&G G2 Double O-ring Air Nozzle
    G&G G2 Double O-ring Cylinder Head
    Stock Air Cylinder (3/4 port)
    Stock Piston Head
    G&G G2 Piston
    ASG M125 AEG spring
    G&G M4 Trigger Switch Assembly
    G&G Original 18K Motor
    Stock G&G Rotary Hop-up Unit
    Maple leaf Mr.Hop Silicone Hop-up Bucking
    Maple leaf Omega Nub
    Prometheus 6.03 inner barrel (Length 128mm G&G Special Edition)
    Airtech Studios IBS Inner Barrel Stabilizer (Model: G&G ARP9)

    With the set up I have above I was shooting 326-334fps and with shoulder-wide grouping at 100ft

    I learned about matching air cylinders with the inner barrel so I gave it a try and with the same exact set up after switching out the stock air cylinder and installing the MAXX Type F air cylinder my fps jumped up to 392-395fps and when I went to test for groupings I noticed it has about a head-size grouping which I am satisfied with. I plan to change to a weaker spring so I can use it for cqb, I then tested the air seal with it and it was very good with no air leak. Overall very satisfied with the air cylinder and highly recommended it
    by Nick M. on 02/05/2023
    "Just awesome mine got stolen :(

    Have an urgent question about this item? Contact us, our resident experts are standing by to answer your questions!
